There can be situations where you need to add some security like HTTP basic authentication to your Composite Services or References. Especially when you have some HTTP Binding Services or References. The HTTP Binding Service in SOA Suite 11g also has a SOAP endpoint beside the HTTP endpoint. With the SOAP endpoint you can always use WS-Security instead of the basic authentication, but if that was the case you won't choose for the HTTP Binding.
For this blogpost I will use my http binding example of this blogpost
In this example I have a Mediator with a HTTP Binding Reference. This reference has as endpoint the execute url of the Execute HTTP Binding Service, which is connected to the BPEL Component.
Select the execute Service and configure SOA WS Policies, Here you need to select the oracle/wss_http_token_service_policy . This OWSM policy enables HTTP Basic authentication for HTTP  & SOAP or WSS Username Token in SOAP.

For the Composite Reference you need to use the oracle/wss_http_token_client_policy.

Off course you need to provide the username / password for the basic authentication.  To do this you need to go to the Enterprise Manager Application and select your WebLogic Domain. In the Menu, select the Security menu Item and then go to Credentials.

When you don't have the oracle.wsm.security Map then you need to create this. In the Map you need to add the basic credentials Key where you can provide the username / password for the HTTP Binding Service and Reference.
After rebooting the SOA Server you can test this HTTP Binding Service. I use Wfetch of Microsoft. The internal tester client of WebLogic and Enterprise is not so great with HTTP posts and security.

First test is a POST on the HTTP endpoint with a bad username.  This gives a HTTP 403 Forbidden.

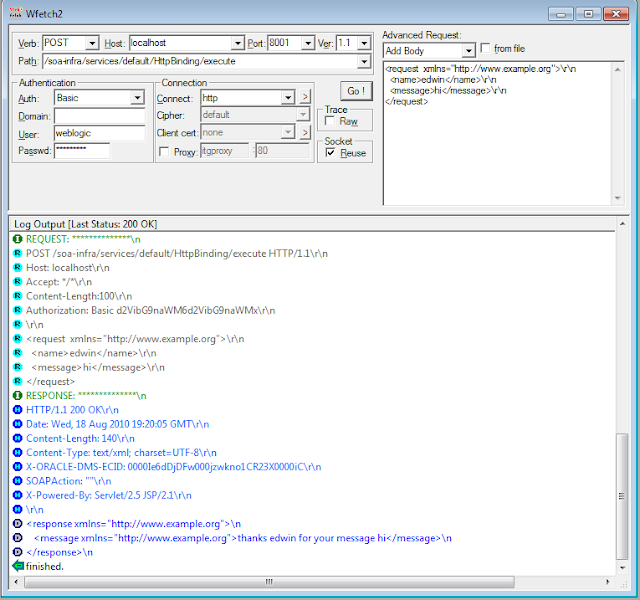

Now with a good username / password and for the POST I only have to provide the request in the body and without the SOAP envelop.

The HTTP Binding service also has a SOAP Endpoint. First we test this with a bad username.


Now with a good username / password. For the SOAP post you need to provide the Content-Type and SOAPAction HTTP Headers and the SOAP envelope with the request.

That's all.

In Fusion Middleware 11g it is not so difficult to protect your JAX-WS Web services or your Composite Services. You just need to add an Oracle Web Service Manager service policy to this Web Service. So that's all the work for the developer or release manager. And now the work starts for the Administrator. This persons need to be familiar with the Enterprise Manager, WebLogic Console, OpenSLL and with the keytool utility of the JDK. In this blogpost I will show what you need to do if you choose for a particular OWSM Policy.


Let's start simple with one of the following policies
oracle/wss_http_token_service_policy
oracle/wss_username_token_service_policy
These policies can be used for HTTP Basic Authentication or for an Username Token in a SOAP message. The only thing you need to do for these policies is to add some Users to the myrealm Security Realm in the WebLogic Console.
On the client side you need to do the following.

execute = new Execute();
SecurityPolicyFeature[] securityFeatures =
            new SecurityPolicyFeature[] { new SecurityPolicyFeature("oracle/wss_username_token_client_policy") };
Request_Response_ptt request_Response_ptt = execute.getRequest_Response_pt(securityFeatures);

// Add your code to call the desired methods.
Map<String, Object> reqContext = ((BindingProvider) request_Response_ptt).getRequestContext();
reqContext.put(BindingProvider.USERNAME_PROPERTY, "test" );
reqContext.put(BindingProvider.PASSWORD_PROPERTY, "weblogic1" );

Request req = new Request();
req.setName("edwin");
req.setMessage("hi");
Response resp = request_Response_ptt.requestResponse(req);

The Message protection policies
oracle/wss10_message_protection_service_policy
oracle/wss11_message_protection_service_policy
When you choose for one of these policies you need to generate a Server certificate for encryption and put this in a Java keystore and for the Client side you also need to make a Keystore but this contains only the public key of this Server encryption certificate.

To add your Server keystore to FMW, you need to go to the Enterprise Manager and select your Weblogic Domain. In the menu go to the Security / Security Provider Configuration page. And on this page you can import your Java keystore. Before you start you need to copy your keystore to your domain folder and put this in the config/fmwconfig folder.

In this example I used two certificates one for the signature and one for the encryption. For Message protection Service policies you only need the encryption certificate.
On the client side you need to load the client keystore and the public key of server encryption certificate.

execute = new Execute();
SecurityPolicyFeature[] securityFeatures =
    new SecurityPolicyFeature[] { new SecurityPolicyFeature("oracle/wss11_message_protection_client_policy") };
Request_Response_ptt request_Response_ptt = execute.getRequest_Response_pt(securityFeatures);
// Add your code to call the desired methods.
Map<String, Object> reqContext = ((BindingProvider) request_Response_ptt).getRequestContext();

reqContext.put(ClientConstants.WSSEC_KEYSTORE_TYPE, "JKS");
reqContext.put(ClientConstants.WSSEC_KEYSTORE_LOCATION, "C:/client_keystore.jks");
reqContext.put(ClientConstants.WSSEC_KEYSTORE_PASSWORD, "welcome");

reqContext.put(ClientConstants.WSSEC_ENC_KEY_ALIAS, "server_encr");
reqContext.put(ClientConstants.WSSEC_ENC_KEY_PASSWORD, "welcome");
reqContext.put(ClientConstants.WSSEC_RECIPIENT_KEY_ALIAS, "server_encr");

Request req = new Request();
req.setName("edwin");
req.setMessage("hi");
Response resp = request_Response_ptt.requestResponse(req);

The above policies can also be combined. Like in these policies.
oracle/wss10_username_token_with_message_protection_service_policy
oracle/wss11_username_token_with_message_protection_service_policy

For these policies you need to a create user in the WebLogic Console for the username token and generate a server and client keystore for the message protection part.
On the client side you need to the following.

execute = new Execute();
SecurityPolicyFeature[] securityFeatures =
    new SecurityPolicyFeature[] { new SecurityPolicyFeature("oracle/wss11_message_protection_client_policy") };
Request_Response_ptt request_Response_ptt = execute.getRequest_Response_pt(securityFeatures);
// Add your code to call the desired methods.
Map<String, Object> reqContext = ((BindingProvider) request_Response_ptt).getRequestContext();
reqContext.put(BindingProvider.USERNAME_PROPERTY, "test" );
reqContext.put(BindingProvider.PASSWORD_PROPERTY, "weblogic1" );

reqContext.put(ClientConstants.WSSEC_KEYSTORE_TYPE, "JKS");
reqContext.put(ClientConstants.WSSEC_KEYSTORE_LOCATION, "C:/client_keystore.jks");
reqContext.put(ClientConstants.WSSEC_KEYSTORE_PASSWORD, "welcome");

reqContext.put(ClientConstants.WSSEC_ENC_KEY_ALIAS, "server_encr");
reqContext.put(ClientConstants.WSSEC_ENC_KEY_PASSWORD, "welcome");
reqContext.put(ClientConstants.WSSEC_RECIPIENT_KEY_ALIAS, "server_encr");

Request req = new Request();
req.setName("edwin");
req.setMessage("hi");
Response resp = request_Response_ptt.requestResponse(req);

The last part of this blogpost I will explain the following policies
oracle/wss10_x509_token_with_message_protection_service_policy
oracle/wss11_x509_token_with_message_protection_service_policy

These policies will use the client certificate for the signature and the public key of the server encryption certificate for the encryption.
So we start by making some keystores with some certificates. I don't use self signed certificates because then for every new client I need to update the server keystore and reboot the FMW server. Now I only have to import the CA public certificate in the Server keystore. This is how my Server keystore looks like

It got a private certificate for the server signature and for encryption. The CA public key is trusted.

For the client I have this keystore. ( Every customer / application can have its own client keystore )

The CA and Server encryption certificates are public certificates and are trusted.
Because the FMW Server does not know this client certificate ( it only knows the CA ) you need to add a new user in the myrealm Secuirty Realm in the WebLogic Console. The password of this user is not important, the only requirement is that the common name of this client certificate is the same as the WebLogic Username.

And as last the Client code, where we need to provide the client signature certificate details.

execute = new Execute();
SecurityPolicyFeature[] securityFeatures =
    new SecurityPolicyFeature[] { new SecurityPolicyFeature("oracle/wss11_x509_token_with_message_protection_client_policy") };
Request_Response_ptt request_Response_ptt = execute.getRequest_Response_pt(securityFeatures);
// Add your code to call the desired methods.
Map<String, Object> reqContext = ((BindingProvider) request_Response_ptt).getRequestContext();

reqContext.put(ClientConstants.WSSEC_KEYSTORE_TYPE, "JKS");
reqContext.put(ClientConstants.WSSEC_KEYSTORE_LOCATION, "C:/client_keystore.jks");
reqContext.put(ClientConstants.WSSEC_KEYSTORE_PASSWORD, "welcome");

reqContext.put(ClientConstants.WSSEC_SIG_KEY_ALIAS, "client1");
reqContext.put(ClientConstants.WSSEC_SIG_KEY_PASSWORD, "welcome");

reqContext.put(ClientConstants.WSSEC_ENC_KEY_ALIAS, "server_encr");
reqContext.put(ClientConstants.WSSEC_ENC_KEY_PASSWORD, "welcome");
reqContext.put(ClientConstants.WSSEC_RECIPIENT_KEY_ALIAS, "server_encr");

Request req = new Request();
req.setName("edwin");
req.setMessage("hi");
Response resp = request_Response_ptt.requestResponse(req);

Next time I will try to describe the SAML policies.
